Description

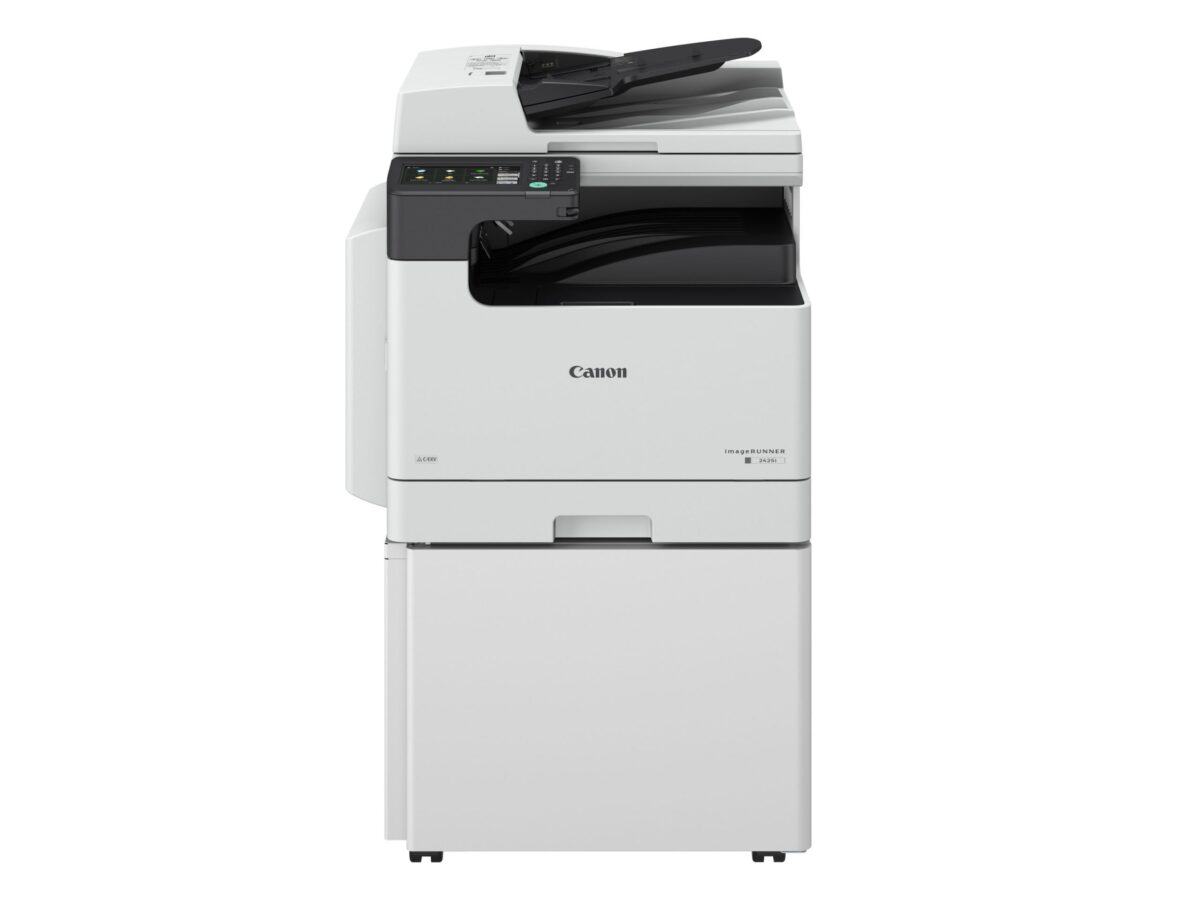

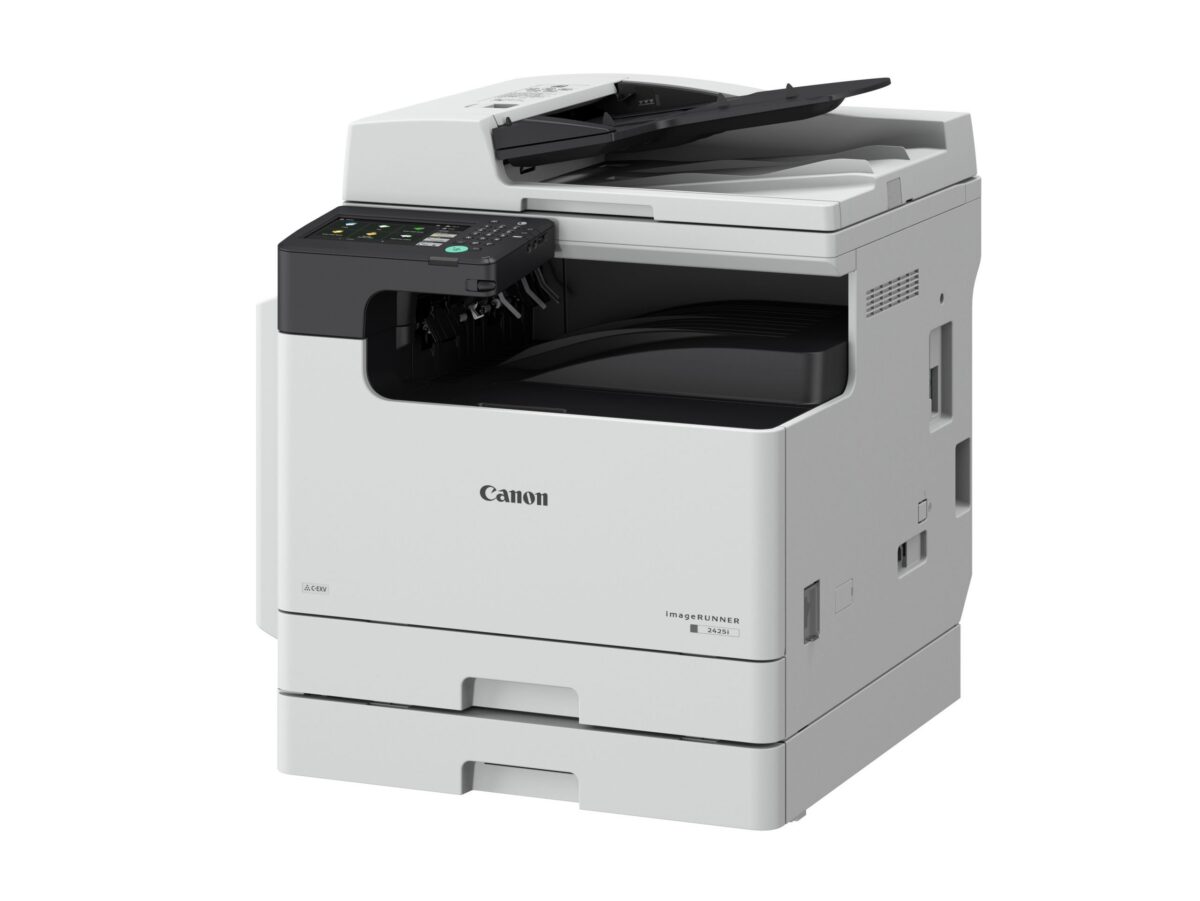

A3 Monochrome Laser Multifunctional
Core functions
Print, Copy, Scan, Send and Optional Fax
Processor
1GHz Dual Core Processor
Control Panel
17.8cm (7 inch) TFT LCD WVGA Colour Touch panel
Memory
Standard: 2.0GB RAM
Storage
Standard: 64GB eMMC (available space: 30GB)
Interface Connection
NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
OTHERS
Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1
Paper Supply Capacity (A4, 80 gsm)
Standard: 330 sheets
Maximum: 580 sheets (with Cassette Feeding Module-AK1)
Paper Output Capacity (A4, 80 gsm)
Max: 250 sheets
Supported media types
Multi-purpose Tray:
Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Label, Pre-punched, Envelope
Paper Cassette:
Plain, Recycled, Colour, Pre-punched
Supported media sizes
Multi-purpose tray:
Standard size: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size/Free Size: Min. 95.0 x 139.7 mm up to 297.0 x 431.8 mm
Paper Cassette:
Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Supported media weights
Multi-purpose tray: 60 to 157 gsm
Paper Cassettes: 64 to 90 gsm
Duplex: 60 to 90 gsm
Warm-up Time (With Quick Start Up Mode ON)
4 Seconds or less*
* Time from device power-on to when key operations can be performed on the touch panel display.
From Sleep Mode: 10 seconds or less
From Power On: 12 seconds or less *
* Time from device power-on, until copy ready (not print reservation)
Dimensions (W x D x H)
iR 2425: 627 x 665 x 516 mm
iR 2425i: 627 x 692 x 616 mm
Installation Space (W x D)
1,065 x 1,285 mm
Weight
iR 2425i: Approx. 39.2 kg including toner
iR 2425: Approx. 34.2 kg including toner
Print Specifications
Print Speed (BW)
Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
Print Resolution (dpi)
600 x 600
Page description languages
Standard: UFR II, PCL6,
Optional: Adobe®PostScript®3TM
Direct Print
Supported file types:
RUI: PDF, EPS, TIFF/JPEG, XPS
USB Memory: PDF, TIFF/JPEG, XPS
Network Place: PDF, TIFF/JPEG, XPS
Printing from mobile and cloud
AirPrint, Mopria, Google Cloud Print, Canon
PRINT Business and uniFLOW Online
A range of software solutions is available to provide
printing from mobile devices and cloud-based services
depending on your requirements. Please contact your
sales representative for further information.
Fonts
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*1 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*2
PS fonts: 136 Roman
*1 Requires optional PCL International Font Set-A1
*2 Requires optional Barcode Printing Kit-D1
Print Features
Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing,
Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date,
Scheduled Printing, Printing Using a Virtual Printer
Operating System
UFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)
PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019
PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)
PPD: Windows® 7/8.1/10, MAC OS X (10.10 or later)
Windows®/MAC OS: As of March, 2020
Copy Specifications
Copy Speed (BW)
Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
First-Copy-Out Time (A4) (BW)
Approx. 7.4 seconds or less
Copy resolution (dpi)
600 × 600
Multiple Copies
Up to 9,999 copies
Copy Density
Automatic or Manual (9 Levels)
Magnification
25% – 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400%
Copy Features
Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Gutter, Copy ID Card, Free Size Original, Reserved copy, Copy Sample
Scan Specifications
Type
iR 2425 : Standard Platen Cover
iR 2425i: Standard Duplexing Automatic Document Feeder [2-sided to 2-sided]
Document Feeder Paper Capacity (80 gsm)
50 Sheets
Acceptable Originals and weights
Platen: Sheet, Book
Document Feeder media weight :
1-sided scanning: 52 to 105 gsm (BW/CL)
2-sided scanning: 52 to 105 gsm (BW/CL)
Only 1-sheet feeding is supported in 37-52 and
105-128 gsm.
Supported media sizes
Platen: max. scanning size: 297.0 x 432.0 mm
Document Feeder media size:
A3, A4, A4R, A5, A5R, B4, B5, B5R
Custom size: 139.7 x 148.5 mm to 297.0 x 432.0 mm
Scan Speed (ipm: BW/CL, A4)
DADF：
1-sided Scanning: 35/25 (300 dpi, send), 25/13 (600 dpi, copy)
2-sided Scanning: 12/8 (300 dpi, send), 8/4 (600 dpi, copy)
Scan Resolution (dpi)
Copy: up to 600 x 600
Send: (Push, BW) up to 600 x 600, (Pull, BW) up to 600 x 600
(Push, CL) up to 300 x 300, (Pull, CL) up to 300 x 300
Fax: up to 600 x 600
Pull Scan Specifications
Colour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 7/8.1/10
Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
Scan Method
Push scan, Pull scan, Scan to Network, Scan to memory media (USB Memory Key), Scan to Mobile Devices, Scan to cloud-based services (uniFLOW)
Send Specifications
Destination
Standard: E-mail/Internet FAX (SMTP), SMB 3.0, FTP WebDAV
Optional: Super G3 FAX
Address book
LDAP (2,000)/Local (1,600)/Speed dial (200)
Send resolution (dpi)
Push: 100 x 100, 150 x 150, 200 x 100 (Standard), 200 x 200 (Fine), 200 x 400*(Super Fine), 300 x 300, 400 x400*(Ultra Fine), 600 x 600*
Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 x 400*, 600 x 600*
*Colour mode is black and white only
Communication protocol
File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
Email/iFax: SMTP (send), POP3 (receive)
File Format
Standard：TIFF (MMR), JPEG *, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word)
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)
*Single page only
Universal Send Features
Original Type Selection, Two-sided Original, Different-size Originals, Density Adjustment, Sharpness,
Erase Frame, Job Build, Sender’s Name (TTI), Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation
Fax Specifications
Maximum Number of Connection Lines
Modem Speed
Super G3: 33.6 kbps
G3: 14.4 kbps
Compression Method
MH, MR, MMR, JBIG
Resolution (dpi)
400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending/Recording Size
Sending: A3, A4, A4R, A5*2, A5R*2, B4, B5*1, B5R*2
Receiving: A3, A4, A4R, A5R, B4, B5, B5R
*1 Sent as B4
*2 Sent as A4
FAX memory
Up to 30,000 pages
Speed dials
Max. 200
Group dials/destinations
Max. 199 dials
Sequential broadcast
Max. 256 addresses
Memory backup
Yes
Fax Features
Sender’s Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, TX Reservation, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox
Store Specifications
Memory Media
Standard: USB Memory
Security Specifications
Authentication and Access Control
User Authentication (Picture Login, Picture and PIN Login, Function Level Login, Mobile Login),
Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express* (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login)
*No charge for this solution; however activation is required.
Access Management System (Access Control)
Document Security
Standard:
Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*1)
Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically)
Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*2)
Send Data Security (Confirming FAX number, Allow/Restrict Fax Driver Transmissions, S/MIME Support)
*1 Requires optional uniFLOW Online / uniFLOW
*2 Requires optional Universal Send Digital User Signature Kit-C1
Network Security
TLS, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception)
Device Security
Protecting MFP Software Integrity, Verify System at Start-up
Device Management and Auditing
Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting
Environmental Specifications
Operating Environment
Temperature: 10 to 30 ºC (50 to 86 ºF)
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source
250 V, 50/60 Hz, 10 Amp
Power Consumption
Maximum: Approx. 1,500 W
Standby: Approx. 22.1 W*1
Sleep mode: Approx. 1 W*2 /Approx. 2 W*3
*1 Reference value: measured one unit
*2 Wireless LAN power serve mode OFF
*3 Wireless LAN power serve mode ON
*2/*3 Sleep mode may not possible in all circumstances due to certain settings
Typical Electricity Consumption (TEC)* :
iR 2425 : 0.31 kWh
iR 2425i: 0.30 kWh
*As per US ENERGY STAR version 3.0
Noise levels (BW)
Sound Power Level (LWA,m)
(1-sided/2-sided)
Active: 6.6* B, kv 0.3* B
Sound Pressure Level (LpAm) (Reference)
Bystander’s position: (1-sided)
Active: 54 dB*
* Reference value: measured only one unit with ISO7779, described with ISO9296:2017
Standards
Blue Angel
Consumables
Toner Cartridges
C-EXV 60 Black Toner
Toner yield (estimated yield @ 6% coverage)
Black: 10,200 impressions (A4)
Software and Printer management
Tracking and reporting
uniFLOW Online Express*
* No charge for this solution; however activation is required.
Remote management tools
iW Management Console
eMaintenance
Content Delivery System
Scanning software
ScanGear
Optimization tools
Canon Driver Configuration Tool
Document Publishing
IW DESKTOP
Paper Supply options
Cassette Feeding Module-AK1
Paper Capacity: 250 sheets x 1 (80 gsm)
Paper Type: Plain, Recycled, Colour, Pre-punched
Paper Size: A3, A4, A4R, A5, B4, B5 ,B5R
Paper Weight: 64 to 90 gsm
Power Supply: From the Main Unit
Dimensions (W x D x H): 581 x 575 x 92 mm
Weight: Approx. 5.8 kg
